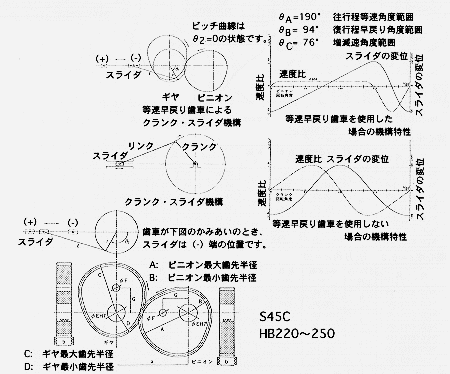

クランク機構用等速早戻り歯車 NC-Gears
| 形式 |
モジ
ュール
m |
中心
距離
a |
歯数
z |
歯幅
b |
主要寸法 (mm) |
| A |
B |
C |
D |
φEH7 |
φEH8 |
G±
0.01 |
NCG-
L3F1- 50 |
1 |
50 |
48 |
10 |
35.426 |
16.186 |
35.777 |
16.536 |
15 |
8 |
19 |
NCG-
L3F1-100 |
1 |
100 |
96 |
10 |
69.853 |
31.373 |
70.554 |
32.073 |
25 |
10 |
35 |
NCG-
L3F2-100 |
2 |
100 |
48 |
20 |
70.852 |
32.373 |
71.554 |
33.072 |
25 |
10 |
35 |
NCG-
L3F2-150 |
2 |
150 |
72 |
20 |
105.279 |
47.559 |
106.33 |
48.609 |
32 |
13 |
50 |
NCG-
L3F3-100 |
3 |
100 |
32 |
30 |
71.852 |
33.372 |
72.554 |
34.072 |
25 |
10 |
35 |
NCG-
L3F3-150 |
3 |
150 |
48 |
30 |
106.279 |
48.559 |
107.33 |
49.609 |
32 |
13 |
50 |
NCG-
L3F4-150 |
4 |
150 |
36 |
40 |
107.278 |
49.559 |
108.33 |
50.608 |
32 |
13 |
50 |
|
